Plastic Injection Mold Maker in China: Capabilities, Applications, and Complete Tooling Workflow
China has become the global center for plastic injection mold manufacturing, supplying high-precision molds to different industries such as automotive, electronics, medical devices, consumer goods, and industrial equipment. When companies search for a plastic injection mold maker in China, they are looking for a partner capable of delivering accuracy, durability, and cost-effective tooling solutions for complex plastic components. China’s mold-making ecosystem has evolved into a highly advanced, engineering-driven industry supported by skilled technicians, modern machining technology, and a mature supply chain.
This article provides a complete, engineering-oriented overview of what defines a professional plastic injection mold maker in China. It explains the capabilities required, the industries served, the full tooling workflow, and the quality systems that ensure long-term performance. It also includes comparison tables, case studies, client testimonials, and authoritative references to help buyers make informed decisions.
Why China Excels in High‑Precision Injection Mold Tooling?
China’s leadership in the global injection mold industry is rooted in a mature industrial system that supports complex, high-risk, and high-precision tooling programs. Beyond manufacturing scale, China has developed the engineering depth, process control, and supplier maturity required for regulated industries such as automotive, medical, and consumer electronics.
Key strengths include:
– Deep engineering talent with strong analytical and validation capability
– Advanced CNC, EDM, and metrology systems enabling tight-tolerance tooling
– Robust supplier networks that support multi-stage qualification and audits
– Compliance with global standards including HASCO, DME, JIS, LKM and etc.
– Proven experience delivering molds for high-complexity, high-volume programs
– Strong capability in risk mitigation, documentation, and lifecycle support
For decision-makers evaluating suppliers, China’s advantage lies in its ability to manage complexity, reduce project risk, and support long-term production reliability.
What a Plastic Injection Mold Maker in China Actually Does?
A plastic injection mold maker in China transforms a digital design into a high-precision steel mold capable of producing millions of consistent plastic parts. Their work requires engineering knowledge, machining expertise, and strict quality control.
Core responsibilities include:
– Reviewing 2D and 3D part data for manufacturability
– Designing the mold structure, gating, cooling, and ejection systems
– Machining cavity and core steel with CNC and EDM
– Assembling mold components with micron-level accuracy
– Conducting mold trials and optimizing performance
– Ensuring the mold meets dimensional and cosmetic requirements
A professional mold maker ensures that the mold runs smoothly, produces stable parts, and minimizes maintenance during mass production.
Capabilities of a Professional Plastic Injection Mold Maker in China
A reliable mold maker must have strong engineering capability, advanced equipment, and a proven quality system. Below are the key capabilities that define a top-tier supplier.
Engineering Expertise
Engineering capability is the foundation of mold quality. A strong engineering team ensures that the mold is manufacturable, durable, and optimized for mass production.
Key strengths include:
– DFM analysis to identify manufacturability issues
– Moldflow simulation for flow, cooling, and warpage prediction
– Experience with complex structures such as thin walls, deep ribs, and undercuts
– Ability to design multi-cavity, hot runner, and unscrewing molds
– Familiarity with global quality expectations

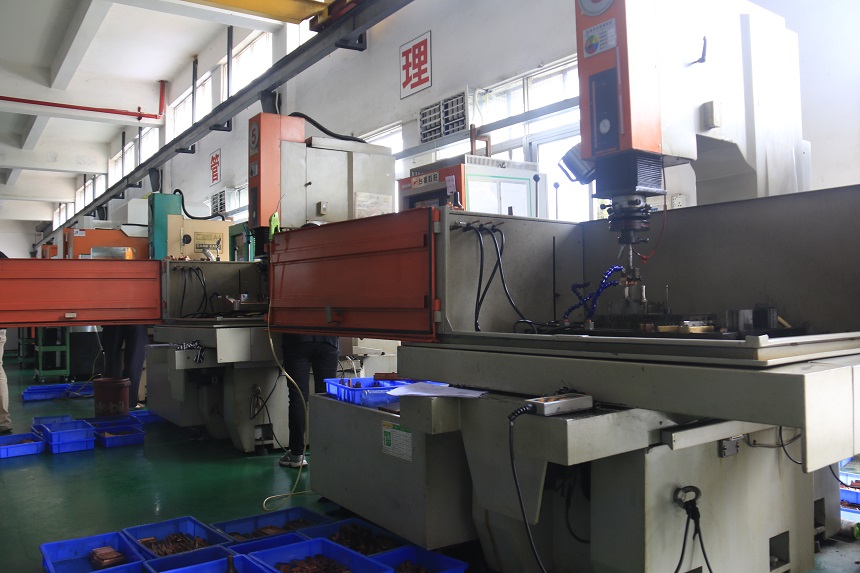

Advanced Manufacturing Equipment
A professional mold maker in China typically operates:

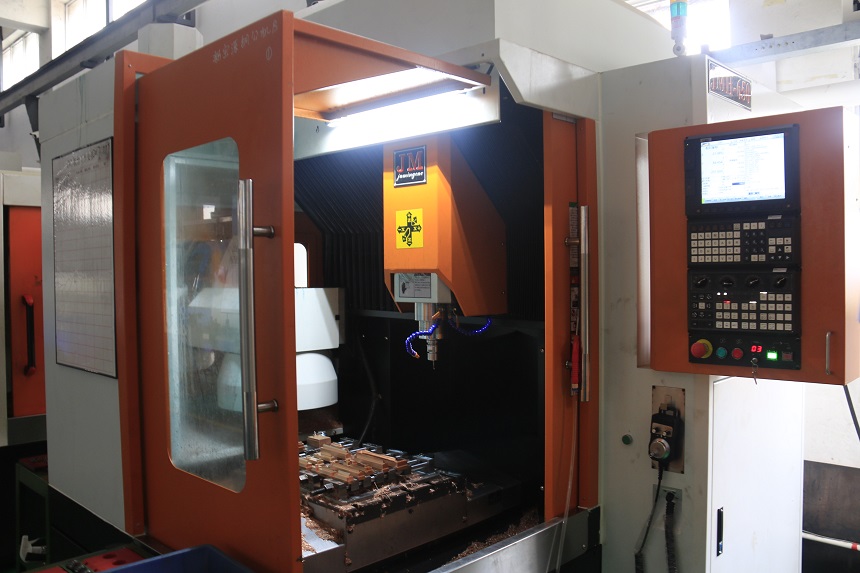

– High-speed CNC machining centers
– Wire cutting and slow wire cutting machines

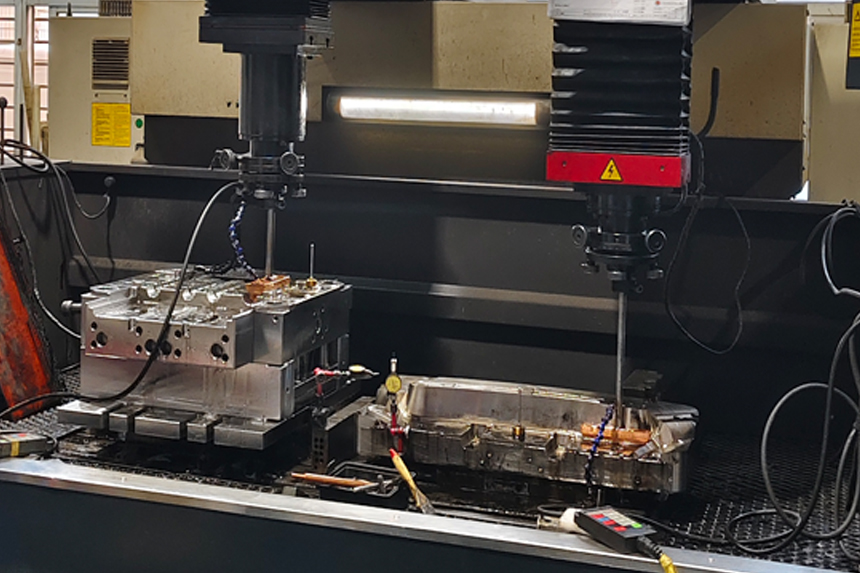

– EDM and mirror EDM
– Precision grinding machines
– Automated polishing systems
– Mold testing machines
These machines ensure tight tolerances, excellent surface finish, and high repeatability.
Quality Control System
Quality must be built into every stage of mold manufacturing.
Typical QC processes include:
– Steel hardness verification
– Dimensional inspection of cavity and core
– Mold assembly inspection
– Cooling and ejection system testing
– T1, T2, and T3 trial sampling
– Full inspection reports
A strong QC system ensures long mold life and stable production.
Types of Plastic Injection Molds Manufactured in China
A professional plastic injection mold maker in China can build a wide range of molds for different applications.
Common mold types include:
– Prototype molds
– Multi-cavity molds
– Family molds
– Hot runner molds
– Cold runner molds
– Unscrewing molds
– Insert molds
– Overmolding molds
These molds support industries such as automotive, electronics, medical devices, consumer goods, and industrial components.
Industries Served by Chinese Plastic Injection Mold Makers
China’s mold makers support a wide range of industries with diverse requirements. Each industry demands specific engineering knowledge, material selection, and quality standards.
Automotive Industry
Typical components include:
– Interior and exterior trim
– Connectors and housings
– Functional components
– Structural plastic parts
– Electronics Industry
Common products include:
– Smartphone housings
– Computer components
– Connectors and switches
– Consumer electronics enclosures
Medical Industry
Typical applications:
– Device housings
– Diagnostic equipment components
– Disposable plastic parts
Consumer Goods
Examples include:
– Household products
– Packaging components
– Toys and lifestyle products
Industrial Applications
Such as:
– Tooling components
– Mechanical housings
– Custom plastic parts
A professional mold maker in China can adapt to the requirements of each industry.
Comparison Table: Plastic Injection Mold Types
This comparison table helps buyers understand the differences between common mold types and select the right tooling solution.
| Mold Type | Advantages | Applications | Complexity Level |
| Prototype Mold | Fast, low cost | Early testing, small runs | Low |
| Multi‑Cavity Mold | High output, consistent quality | Mass production | High |
| Family Mold | Multiple parts in one mold | Product sets | Medium |
| Hot Runner Mold | Faster cycles, less waste | High‑volume production | High |
| Unscrewing Mold | Internal threads | Caps, closures | Very High |
| Overmolding Mold | Multi‑material parts | Soft‑touch components | High |
Complete Project Workflow of a Plastic Injection Mold Maker in China
A structured workflow ensures consistent quality and predictable lead times. Below is the complete tooling process used by professional mold makers.
- RFQ and Part Analysis
The process begins with reviewing:
– 2D and 3D part data
– Material requirements
– Expected volume
– Cosmetic and dimensional requirements
- DFM and Moldflow
The engineering team identifies:
– Wall thickness issues
– Draft angle requirements
– Gate location optimization
– Cooling efficiency
– Warpage risks
- Mold Design
The mold structure is defined, including:
– Cavity and core layout
– Runner and gate design
– Cooling channel layout
– Ejection system
– Venting strategy
- Machining
CNC, EDM, wire cutting, and grinding shape the steel into precise components.
- Assembly
All components are assembled with micron-level accuracy.

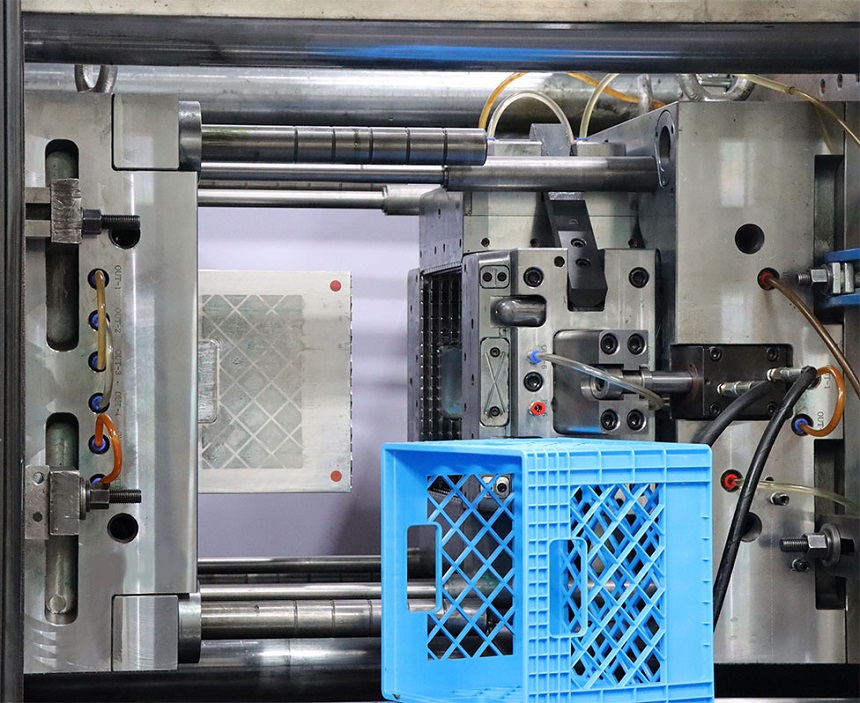

- Mold Trial
The mold is tested on an injection machine.
- Optimization
Adjustments are made to improve:
– Dimensional accuracy
– Surface finish
– Cycle time
– Cooling performance
- Final Delivery
The mold is shipped with:
– Full inspection reports
– Spare parts
– Trial samples
– Maintenance recommendations
Case Study: Improving Production Efficiency with a Chinese Mold Maker
A global electronics company required a high-precision housing with thin walls and complex internal structures. The project was challenging due to tight tolerances and cosmetic requirements.
For a medical‑device housing project, the Chinese mold maker demonstrated strong alignment with a structured supplier‑evaluation framework:
– A Supplier Maturity Model (SMM) assessment confirmed the factory met Tier‑1 standards in process control and documentation.
– A Process Window Validation (PWV) study defined stable molding parameters, reducing scale‑up risk for regulated markets.
– A DOE‑based optimization cut trial iterations by 40%, shortening validation time.
– A lifecycle‑cost (LCC) comparison showed that the selected tooling solution could reduce total cost of ownership (TCO) by 17% over a five‑year period.
– A risk‑mitigation plan addressed traceability, material compliance, and long‑term maintenance requirements.
This case illustrates that supplier capability must be evaluated through structured frameworks—not solely by price or a single mold trial result.
Client Testimonial
“We needed a complex multi-cavity mold for a high-volume consumer electronics project. The engineering team provided clear DFM feedback, fast communication, and excellent mold quality. The final mold exceeded our expectations in both precision and cycle time performance.”
Frequently Asked Questions
Why China is considered the global leader in injection mold manufacturing?
China leads the industry due to its integrated supply chain, advanced CNC/EDM machining capability, standardized processes (HASCO, DME, JIS, LKM), and highly trained engineering teams. Large‑scale manufacturing and efficient logistics also allow Chinese mold makers to deliver predictable cost, stable quality, and fast lead times.
What cost advantages does Injection Mold Maker in China offer?
Injection Mold Maker in China provides lower machining and labor costs, economies of scale in steel and components, optimized factory operations, and competitive pricing for complex molds. This results in lower initial tooling investment, faster ROI, and more flexibility for design iterations without sacrificing engineering quality.
How do Chinese mold makers ensure consistent quality for global industries?
Professional Chinese mold makers follow international standards (HASCO, DME, RABOURDIN, JIS, LKM) and implement strict QC processes such as steel hardness testing, dimensional inspection, cooling/ejection verification, and multi‑stage mold trials (T1–T3). Full inspection reports ensure compliance with automotive, medical, and electronics requirements.
What engineering capabilities distinguish a reliable injection mold maker in China?
Top Chinese mold makers offer DFM analysis, Moldflow simulation, deep‑rib and thin‑wall expertise, multi‑cavity and hot‑runner design, and experience with unscrewing and high‑precision molds. Their engineering teams guide customers from part analysis to mold validation, ensuring manufacturability and long‑term production stability.
What does the complete tooling workflow look like in China?
The workflow includes RFQ & part analysis → DFM & Moldflow → mold design → CNC/EDM machining → assembly → mold trial → optimization → final delivery with reports and spare parts. This structured process ensures predictable lead times, stable performance, and smooth transition into mass production.
Top Plastic Injection Mold Maker in China for High-Precision Projects: PTMS
PTMS has been a professional plastic injection mold maker in China since 2002, providing high-precision injection molds for global customers. With more than 20+ years of experience, PTMS combines advanced CNC, EDM, wire cutting, and grinding equipment with skilled engineers and strict quality control. The company specializes in prototype molds, multi-cavity molds, family molds, hot runner molds, and unscrewing molds, meeting international standards such as HASCO, DME, JIS, LKM and etc.
